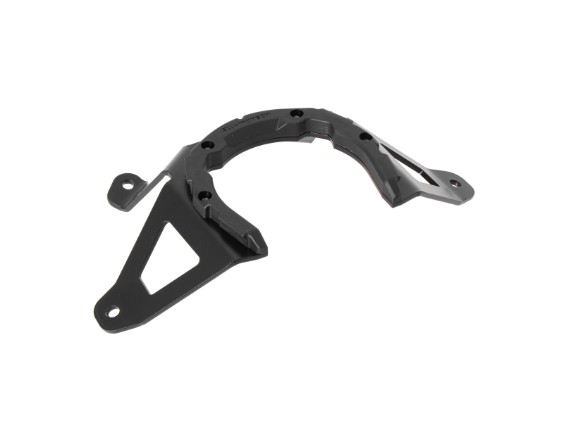

SW-Motech PRO tank ring for Yamaha Tenere / Ténéré 700 (19-)

PRO tank ring
The PRO tank ring of the Ténéré 700 sits on a model-specific mounting element. The attachment element is firmly screwed onto the motorcycle's tank.

The PRO tank ring perfectly combines the innovative strength of two German companies: The QUICK-LOCK latching mechanism of the SW-MOTECH tank rings, which has been tried and tested for years, is now even easier to operate thanks to the magnetic guide aid of Fidlock technology. We have significantly improved the positioning of the top ring: the sliding top ring is already pre-mounted on the tank bag with a guide rail and the tank bag does not have to be drilled into.

This means that the upper ring can be individually aligned on the guide rail on the underside of the tank bag. Once the right position has been found, the upper ring is screwed tight. When changing to a different motorcycle, the position of the upper ring can be adjusted accordingly.

The magnetic guide aid, developed by Fidlock, complements SW-MOTECH's already sophisticated mechanical QUICK-LOCK snap-on closure: the magnets guide the top ring into the right position on the tank ring and the closure locks firmly into place. Thus, the force of the magnets supports the placement of the tank bag. Attach the tank bag with a flick of the wrist and ride off – the luggage sits securely and it's fun, too.

The mechanical latching mechanism secures the tank bag and the magnets bring the two parts of the ring together. The robust fiberglass-reinforced plastic with its high-precision latching geometry is responsible for keeping the tank bag firmly in place in all road conditions.

The patented PRO tank ring is matched to the tank filler neck of the motorcycle model. This ensures the best possible positioning on the tank.

• Model-specific adapter ring for best fit and individual solutions
• Easy mounting on the tank filler neck
• Magnetic guide in PRO tank ring for easy attachment
• Quick release via pull strap allows removal of the PRO tank bag in one easy step
• The patented PRO tank ring gives PRO tank bags a secure hold
• Easy refueling, tank cap can be opened as usual
• Made of glass fiber reinforced polyamide
• Paint-friendly solution: the tank bag does not rest on the tank

Scope of delivery

• 1 x PRO tank ring
• 1 x mounting element
• Mounting instructions
• Mounting material

Details

• Material: glass fiber reinforced plastic / aluminum
• color: black
• total weight: approx. 0,6 kg

Note

• Does not fit with handlebar riser or relocation.
• The tank rings of the PRO series can not be combined with the EVO tank bags.
